Waste Heat Driven
–Steam-fired GeneLink
EXJE series [120 to 1,000USRT]
Enhanced waste heat recovery type steam-fired Gene-Link (EXJE series)
*1 Large chilled water temperature differential (catalogue standard specification)
422〜3,516kW (120〜1,000USRT) [Steam-fired]
EXJE series [120 to 1,000USRT]
Enhanced waste heat recovery type steam-fired Gene-Link (EXJE series)
*1 Large chilled water temperature differential (catalogue standard specification)
422〜3,516kW (120〜1,000USRT) [Steam-fired]
Features
Increasing the amount of the waste hot water recovered from the cogeneration system comparing with the conventional model, this unit reduces the amount of steam consumed by 30%.
Moreover, the chiller can be operated with wasted hot water only under low load condition (approx. 50% or lower).
・Use of hot water-heated solar heat
In addition to the waste hot water of co-generation systems, solar heat application can also be used.
Gas consumption
The input of waste hot water, reduces steam consumption by approx. 30% during rated cooling operations. Moreover, under low-load (below 50%) conditions, chiller can be operated by waste hot water only.

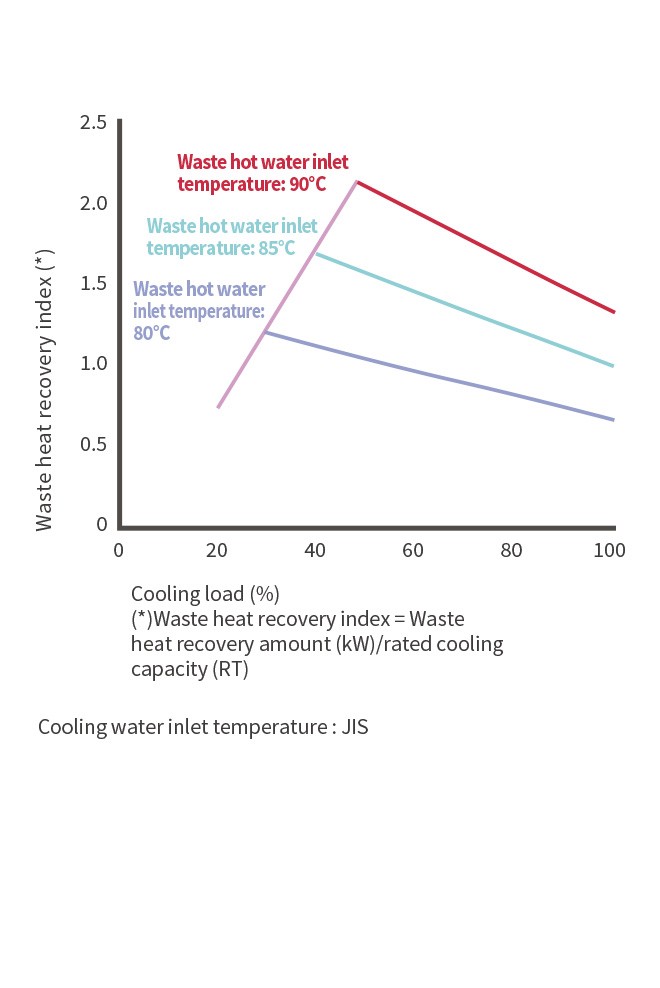

Amounts of waste hot water recovered
During partial load operations, priority is given to the use of waste hot water so the volume of steam consumed can be significantly reduced.
Specifications
–Specifications
Steam-fired GeneLink
EXJE Series (Model: HAU-BW/CW)
| 120EXAJE | 210EXAJE | 300EXAJE | 400EXAJE | 500EXAJE | 630EXAJE | 700EXAJE | 800EXW2AJE | 900EXW2AJE | 1000EXW2AJE |
|---|
| Cooling capacity | kW | |
| USRT |
| Cooling capacity (Waste hot water-only operations) | kW | |
| USRT | ||
| % |
| Steam reduction rate (During rated cooling operations) | % |
| Chilled water temperature 15 -7 ℃, Cooling water temperature 32-37℃, Steam inlet pressure 0.78 Mpa(G), Waste hot water temperature 90-80℃ 3.6 kg/h･RT steam consumption rate (while waste hot water is not used) |
| 422 |
| 120 |
| 211 |
| 60 |
| 50 |
| 30 |
| 738 |
| 210 |
| 369 |
| 105 |
| 50 |
| 30 |
| 949 |
| 270 |
| 475 |
| 135 |
| 50 |
| 30 |
| 1,407 |
| 400 |
| 703 |
| 200 |
| 50 |
| 30 |
| 1,758 |
| 500 |
| 879 |
| 250 |
| 50 |
| 30 |
| 2,110 |
| 600 |
| 1,055 |
| 300 |
| 50 |
| 30 |
| 2,461 |
| 700 |
| 1,231 |
| 350 |
| 50 |
| 30 |
| 2,813 |
| 800 |
| 1,407 |
| 400 |
| 50 |
| 30 |
| 3,165 |
| 900 |
| 1,582 |
| 450 |
| 50 |
| 30 |
| 3,516 |
| 1,000 |
| 1,758 |
| 500 |
| 50 |
| 30 |
