Waste Heat Driven

Gas fired GeneLink

EXJE series [120 to 1,000USRT]
Increasing the amount of the waste hot water recovered from the cogeneration system comparing with the conventional model, this unit reduces the amount of gas consumed by 40%*1.
In addition, the operating range when the chiller can be operated only by waste hot water is enlarged. This unit does not require fuel gas under 58% load operation.*1:[Cooling mode] Large chilled water temperature differential (catalogue standard specification)

Gas consumption reduced by 40%*1 by using waste heat
Enhanced waste heat recovery type Gas-fired Gene-Link (EXJE series)
*1 Large chilled water temperature differential catalogue standard specification.

422〜3.516kW (120〜1,000USRT) [Gas-fired]

EXJE series [120 to 1,000USRT]
Increasing the amount of the waste hot water recovered from the cogeneration system comparing with the conventional model, this unit reduces the amount of gas consumed by 40%*1.
In addition, the operating range when the chiller can be operated only by waste hot water is enlarged. This unit does not require fuel gas under 58% load operation.*1:[Cooling mode] Large chilled water temperature differential (catalogue standard specification)

Gas consumption reduced by 40%*1 by using waste heat
Enhanced waste heat recovery type Gas-fired Gene-Link (EXJE series)
*1 Large chilled water temperature differential catalogue standard specification.

422〜3.516kW (120〜1,000USRT) [Gas-fired]

Features

・Greatly diminished gas consumption rate by increased the amount of waste hot water recovery By increasing the amount of the waste heat recovered, fuel reduction rate of 40% has been achieved and gas consumption has been cut dramatically. Moreover, the chiller can be operated with wasted hot water only, under low load condition (approx. 58% or lower).

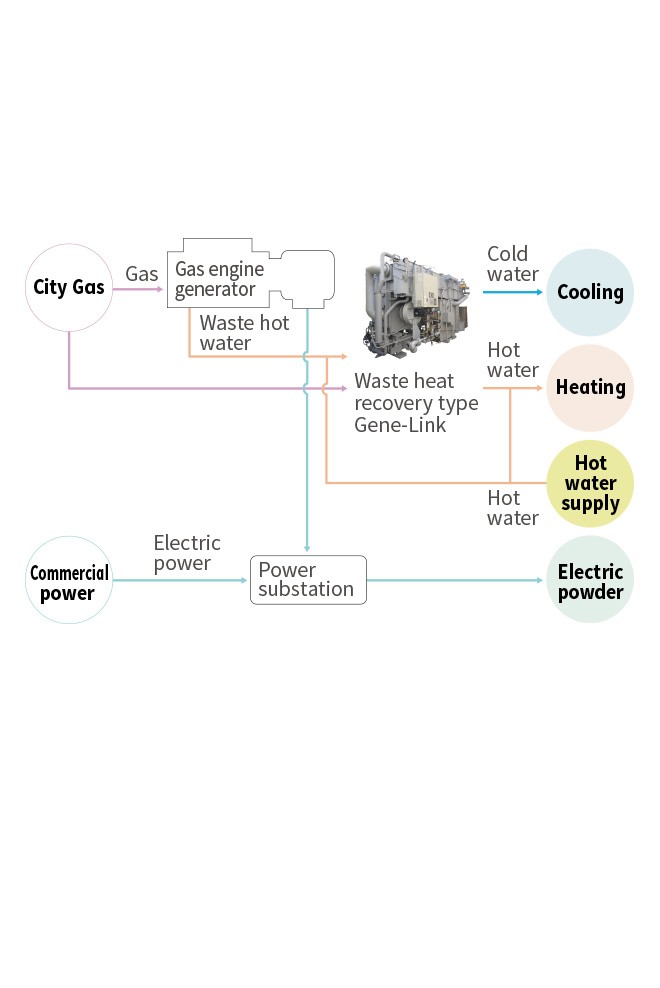

・Utilizing waste hot water during heating mode can simplify the system design (option) By placing a plate heat exchanger used for heating on the Gene-Link side, waste heat can be utilized during heating mode. This obviates the need*1) for a heat exchanger for heating at the facility side, and helps to simplify the system and can cut 55% to 69% of the gas consumption rate for heating.

・Use of hot water-heated solar heat In addition to the waste hot water of cogeneration systems, solar heat can also be used.



*1 Only in case when all heating demand can be covered by wasted hot water.

*2 Fuel consumption reduction rate during waste heat recovery heating mode varies from one model to another.

Gas consumption

Gas consumption

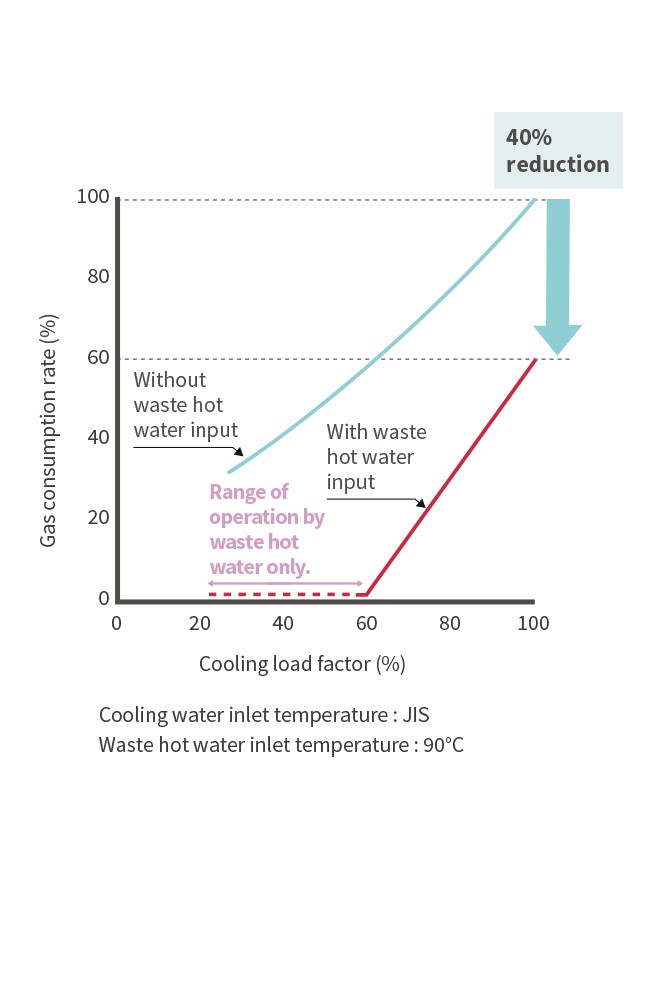

The input of waste hot water reduces gas consumption by approx. 40% during rated cooling operations. Furthermore, cooling capacity up to 58% can be covered by waste heat recovery cooling only.

The waste hot water outlet temperature will be approx. 77℃ during waste heat recovery operation mode.

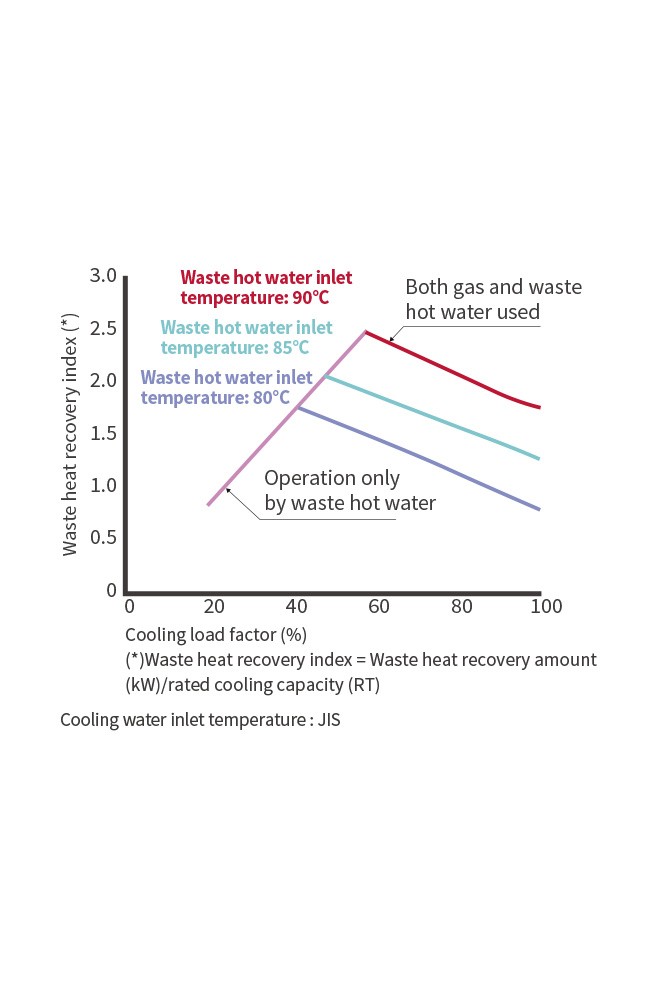

Amounts of waste hot water recovery

During partial load operations, priority is given to the use of waste hot water so the amount of gas consumed can be significantly reduced.

Specifications

Specifications

Resources

Resources

Manuals, brochures and other product literature. If you need any more information, please get in touch.
